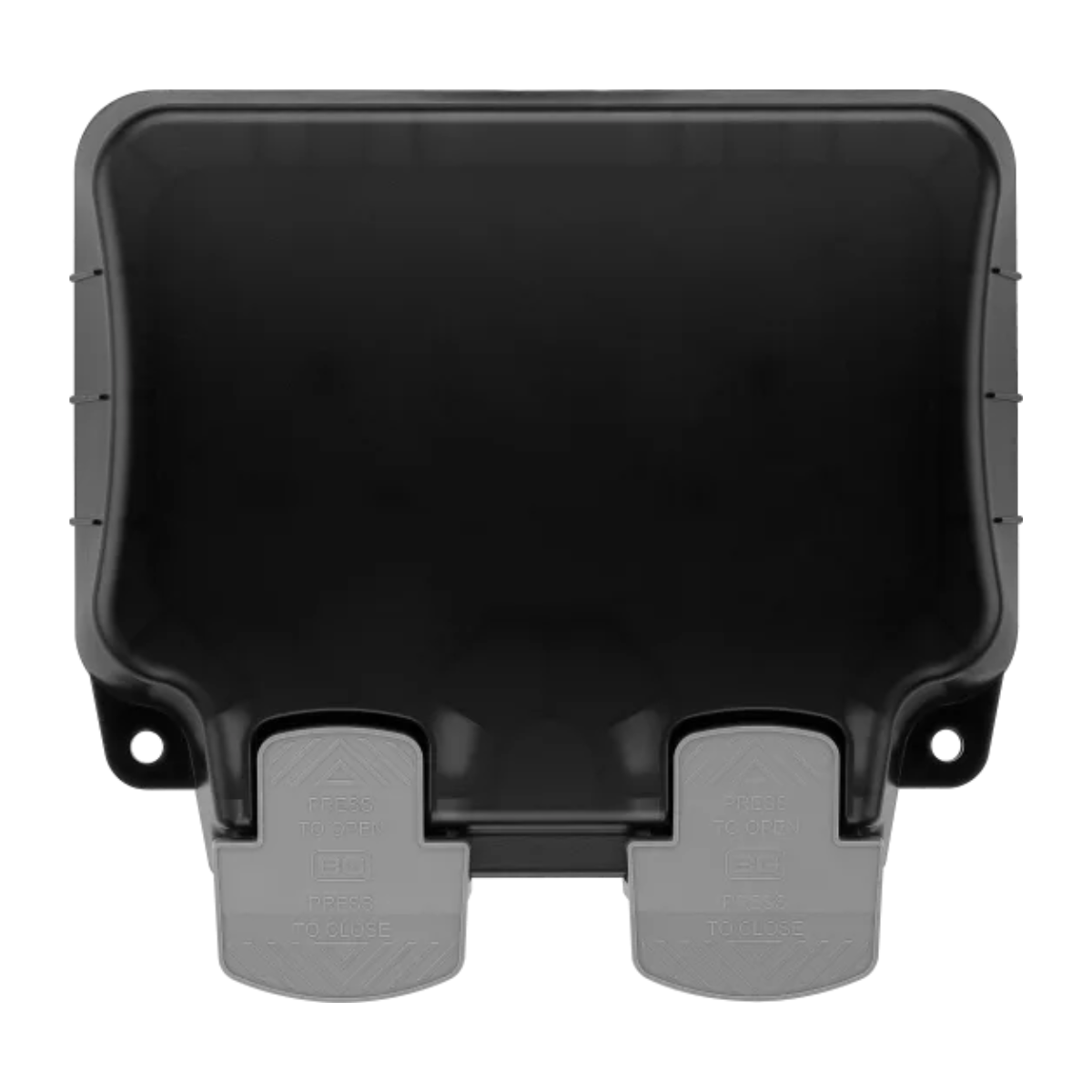

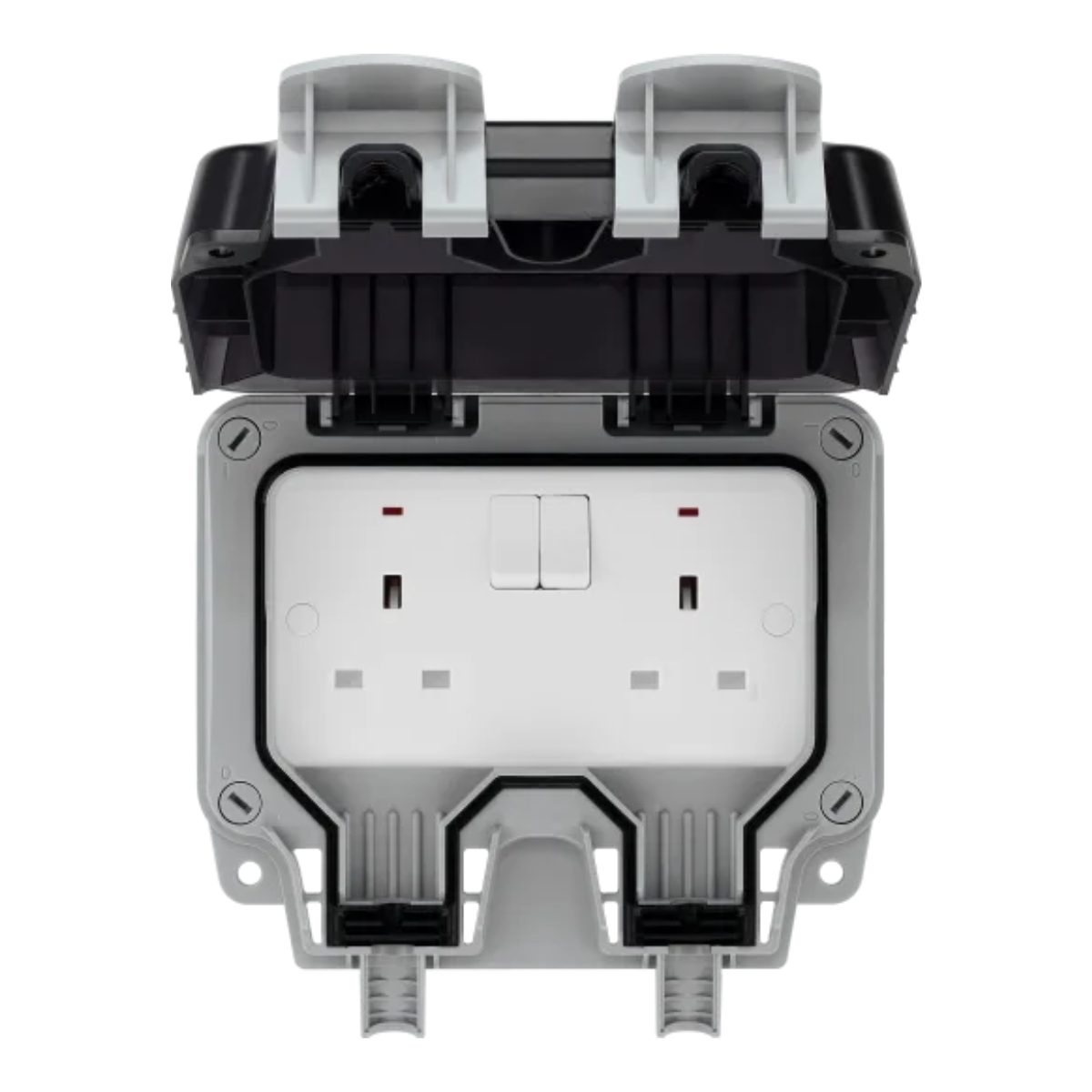

BG Electrical Double Switched 13A Outdoor Socket, IP66 Rated

IP66 rated when in use

Cover will stay open to allow for easy access to sockets

Switched sockets with LED indicator

WP21 is certified to BS1363 /EV and suitable for EV charging

Fast fix – no separate screws, no screw covers, 150º rotation

Patented cable entry – prevents accidental opening of cover by pulling of connected cable

Large open/closer paddles for easier operation, flush fit to prevent accidental damage

Multiple gland entry positions: single sockets have 5 versatile entry options and double sockets have 8 versatile entry options, with M25 capability with an easy push out blank plug design.

1 drill out entry 20/25mm in rear face

• Standard(s): BS 1363-2:2016+A1:2018 and BS1363/EV (WP21 only)
• Rating: 13 Amp 250V AC
• Switch Type: Single pole
• Contact Gap: 3.0mm minimum
• Terminal Capacity: 3 x 2.5mm² 3 x 4mm² 2 x 6.0mm²
• IP Rating: IP66
• RoHS Directive
• WEEE Directive
